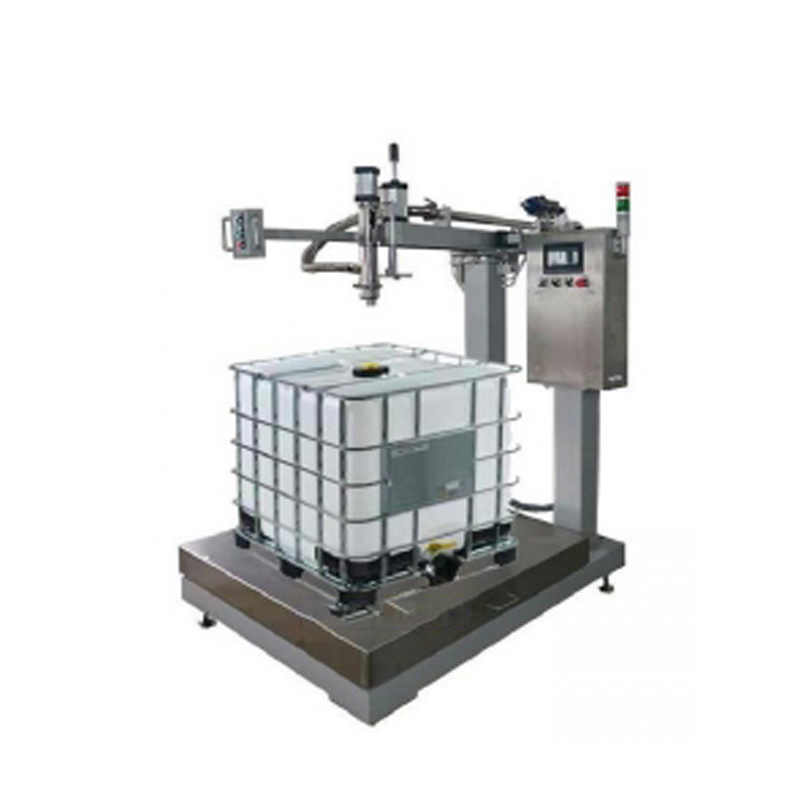

IBC Filling Machine U-type

1. Design Fundamentals

The GZM-1000KMS filling machine is a filling machine specially developed by Shanghai Guangzhi Automation Equipment Co., Ltd., suitable for working environments in petrochemical, pharmaceutical, food, military and other enterprises. It adopts a liquid level filling method and is suitable for various liquid materials. The uniquely designed spray gun device is easy to operate, with fast and accurate infusion; And ensure to the greatest extent possible the leakage of residual liquid upon completion of infusion.

Widely used in production workshops and warehouse management in the food processing and pharmaceutical industries; Production process control and measurement of finished and semi-finished products for paint and fine chemical raw materials in the chemical industry; Measurement of materials in military manufacturing industry.

1000L bucket placed on the conveyor line - automatic conveying - automatic positioning - automatic insertion into the bottom of the bucket - using servo motors for lifting to avoid foaming - automatic filling - automatic fast addition - automatic slow addition - automatic stop - automatic conveying - forklift handling

The entire canning process is unmanned and intelligent, improving product quality.

Automatic filling machine

Characteristics of the system

Made according to the standard QB/T2501-2000 Gravity Automatic Loading Scale;

The contact material part is made of 304L and PTFE, which is corrosion-resistant;

The system is manufactured with high-end electrical accessories such as Omron RELAY;

The front section of the filling gun is equipped with an additional pneumatic ball valve that automatically closes when not filled to prevent material leakage;

The sealing systems are all made of polytetrafluoroethylene, which is solvent resistant, acid and alkali resistant, and has a long service life;

The filling gun adopts an insertion type filling method to avoid causing materials to fly shallow on the barrel and affecting the outer packaging;

The system adopts a three speed automatic filling feeding method to improve accuracy;

After the single barrel filling value reaches, the filling gun will automatically lift and wait for the next start;

When the filling gun is not inserted into the barrel mouth, the filling gun automatically lifts and does not perform filling;

When filling, simply manually move the bucket to the weighing table, align it with the gun head, and press the start button to execute filling;

In case of emergency, press the emergency stop button to release this filling;

Automatic nitrogen filling to avoid material contact with air

Adopting one click operation: start - automatic peeling - dual speed filling - complete

Basic parameters

Maximum weighing capacity: 1500kg

Display division value: 0.1kg

Filling error: less than ± 0.1%;

Filling speed: approximately 9-15 barrels per hour (1000 liters depending on feed flow rate);

■ Power supply: AC380/50Hz (provided by the user to one side of the machine);

■ Gas source used: 0.4-0.6Mpa (provided by the user to one side of the machine);

Usage temperature: -10 ℃ -50 ℃;

Relative humidity:<95% (non condensing);

Control mode: 2nd gear control;

Pipeline pressure: 0.2-0.6 MPa;

1.5 inch quick loading interface for material interface;
